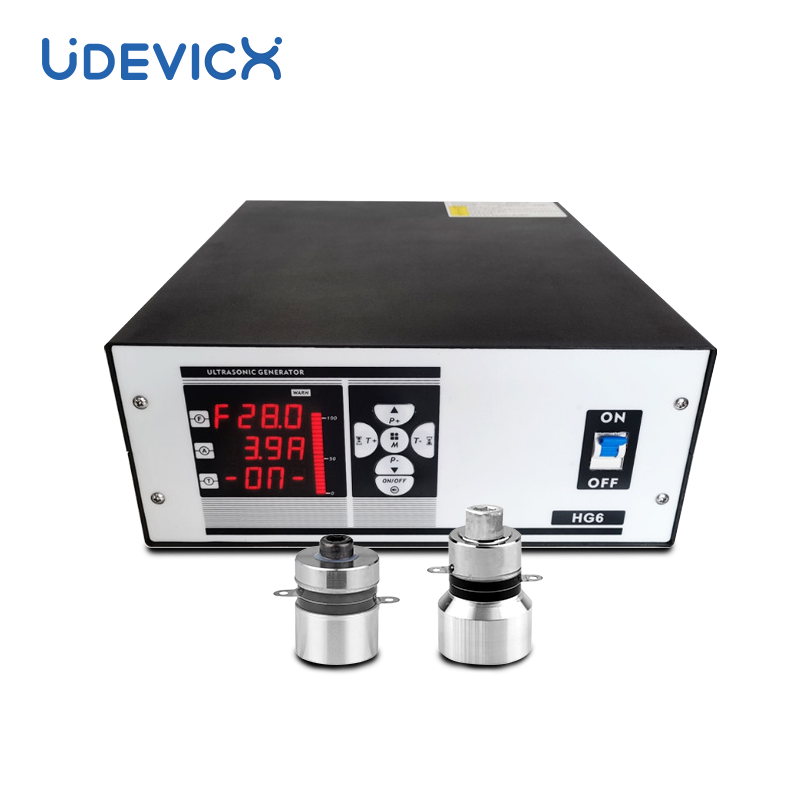

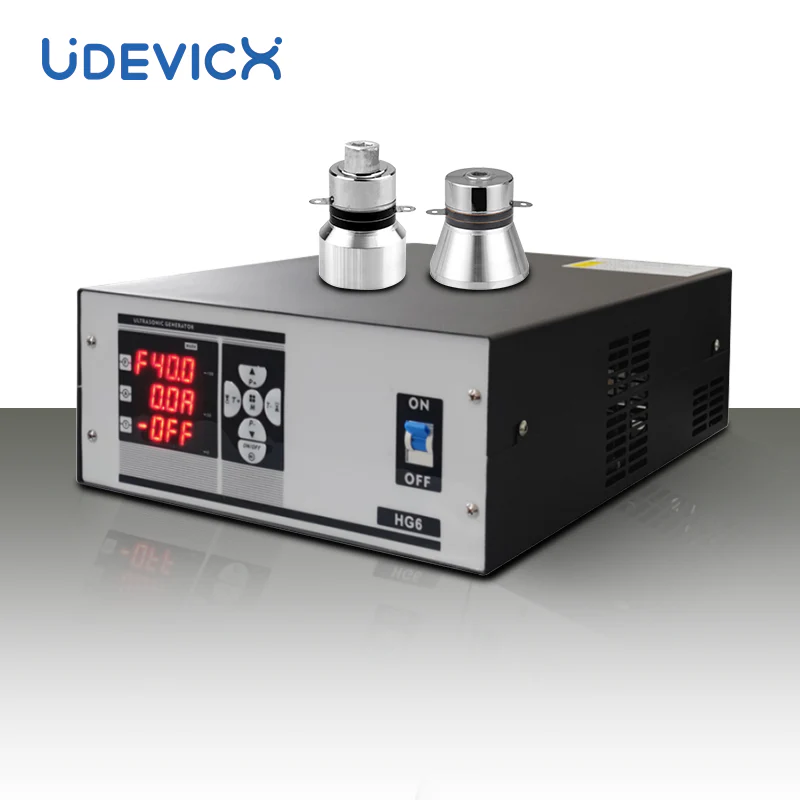

HG6-I Ultrasonic Generator | 1500W Intelligently Adjustable Industrial Ultrasonic Power Source
The HG6-I Ultrasonic Generator is a high-performance, intelligent ultrasonic energy output device, designed specifically for applications such as industrial cleaning, laboratory pre-treatment, medical instrument cleaning, and precision part processing. At its core, it utilizes advanced digital control technology to ensure stable, efficient, and precisely controllable ultrasonic energy output, making it a reliable choice for enhancing cleaning process quality and automation levels.
Product Core Advantages
Intelligent Power Control for Precise Process Matching
Equipped with a 0-100% full-range digital stepless power adjustment system. Users can finely control the output intensity (1-5.0A) according to different cleaning objects and contamination levels, ensuring optimal cleaning results while achieving efficient energy use.
Triple-Frequency Selectable for Wide Applicability
Supports quick switching between three operating frequencies: 25KHz, 28KHz, and 40KHz. Lower frequencies offer stronger penetration, suitable for larger or heavier workpieces. Higher frequencies provide greater precision, ideal for delicate cleaning of precision parts, electronic components, and laboratory glassware.
Global Voltage Compatibility for Flexible Deployment
The standard model is adapted for AC220V±10%/50Hz power grids. An optional AC100-400V wide voltage configuration is specially offered, allowing compatibility with the vast majority of industrial power environments worldwide without the need for an extra transformer, simplifying installation and overseas deployment.
Robust, Compact & Stable for Durable Performance
Built with industrial-grade design and components in a compact structure. Capable of stable long-term operation in ambient temperatures of 0-40°C and humidity of 40%-90%. Integrated multi-protection mechanisms ensure equipment longevity and reliability.
User-Friendly Timing Function
Features a timer with a 0-100% adjustable range (in seconds). Users can pre-set working durations to automate processes, saving manpower and guaranteeing consistent treatment results.
Detailed Technical Specifications
| Item | Specification |
|---|---|
| Product Model | HG6-I |
| Rated Power | 1500W |
| Max. Output Current | 1-5.0A |
| Operating Frequency | 25KHz / 28KHz / 40KHz (Selectable) |
| Power Control | 0-100% Digital Stepless Adjustable |
| Operating Voltage | AC220V ±10%, 50Hz (Optional AC100-400V Wide Voltage Version Available) |
| Timer Function | 0-100% Adjustable (Seconds) |
| Environmental Adaptability | Temperature: 0-40°C; Humidity: 40%-90% |
| Net Weight | 9.0 - 9.8 kg |
| Product Dimensions | 382 × 308 × 137 mm |
| Packing Dimensions | 468 × 373 × 200 mm |
| Packing Weight | 9.7 - 10.5 kg |
Typical Application Scenarios
Industrial Manufacturing: Cleaning oil, grease, and debris from hardware parts, molds, and automotive components.
Laboratory: Pre-treatment for residue removal from glassware and experimental instruments.
Medical Field: Pre-cleaning of surgical instruments and dental tools before sterilization.
Electronics Industry: Cleaning of PCB boards, silicon wafers, and precision electronic components.
Jewelry & Optics: Fine maintenance of jewelry, lenses, and optical devices.
The HG6-I Ultrasonic Generator integrates intelligent control, flexible configuration, and robust quality, serving as the core power unit for building your efficient and reliable cleaning or processing system. We are committed to providing professional technical support and solutions. Welcome to inquire.
